Fairdale Weekender Archer / 9-speed friction drivetrain

Crank Decision Page

The useful answer is not "pick from 22 cranks." It is: prove the fork/headset and bottom bracket are safe, then buy the simplest square-taper 1x path that finishes the bike.

Start with the decision Compare options Original PDF

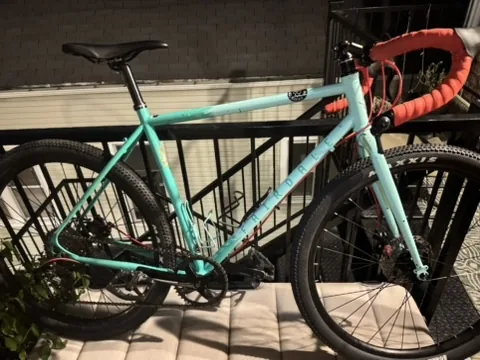

Aqua Fairdale Weekender Archer with red drop bar tape and a partially finished drivetrain rebuild.
This is a real repair decision first, a crank-style decision second.
01 / Bottom Line

Buy the crank that gets the Fairdale riding, not the crank that makes the spreadsheet beautiful.

The original PDF is fun, but it over-weights the fantasy matrix. The local rebuild notes point to a tighter path: this bike was born as a 1x9 all-road/commuter with a 42T narrow-wide ring, 11-36 cassette, square-taper crank, and practical rack/fender energy. Stay close to that unless the project becomes a proven keeper.

First move

Measure before money

Inspect the fork crown race seat, headset standard, BB type, BB shell width, spindle condition, crank length, rear wheel, cassette, and chainline.

Reason: fork/headset safety is the actual blocker.

Recommended buy

microSHIFT Sword Black 42T

Use the 175mm 42T square-taper crank with a 68x113mm JIS BB if the measurements match. It gives a gravel-friendly 50mm chainline and keeps the build simple.

Role: finish the bike without turning it into jewelry.

Taste upgrade

Velo Orange 42T

Pick this if the frame/fork checks pass and the bike is becoming a keeper. It looks right on aqua steel, but verify chainline carefully with the 135mm rear end.

Role: best vibe per dollar after the bike earns it.

58cmLikely L/XL crank length target: 175mm.
1x9Original Archer drivetrain shape: simple 42T front, 11-36 rear.
68mmLikely English/BSA shell, but measure before ordering.
135mmRear spacing makes chainline more important on square taper.
42TDefault all-road ring size for this build.
02 / The Buy Gate

Do these checks before the cart gets opened.

This is the part the PDF needed most: a plain go/no-go gate. A crank choice is only useful after the safety and fit questions are answered.

Fork crown race seatRace must sit flat and square. If the seat is cracked, ovalized, deeply gouged, or unstable, stop and solve fork/headset first.
Headset standardConfirm the lower bearing/crown race path. Local notes point to FSA sealed integrated 45/45, likely IS42/30.
BB shell and spindleConfirm 68mm English shell, square-taper interface, and whether the hammered spindle is smooth, straight, and play-free.
Rear wheel and cassettePick the actual rear wheel, then decide whether to return to 11-36 or use a moderate 11-42. Do not design around a troublesome 11-51.
Crank lengthIf replacing one arm only, match 175mm exactly. If replacing the crankset, 175mm is the stock L/XL target unless fit says otherwise.
Chainline and clearanceConfirm the ring clears the chainstay and the chain runs cleanly in the normal rear cogs.
03 / Crank Matrix

The shortlist beats the giant catalog.

Keep the original PDF's personality, but make the decision smaller. These are the options worth comparing for this specific Fairdale.

Option Approx. Spend Fit Logic Best Use Watchout Verdict Links
Existing FSA-style arm/ring $0-$40 if a left arm appears Likely square taper; only works if length and interface match exactly. Cheapest possible resurrection. Hammered BB may already be compromised. Test only
microSHIFT Sword Black 42T $79-ish crank + BB JIS square taper, 68x113mm BB, 50mm chainline, 9/10-speed compatible. Best practical Fairdale finish path. 110 asymmetric 4-bolt ring is more specific than a common 110 BCD ring. Recommended
Shimano CUES FC-U4000-1 40T $52-ish crank + BB JIS square taper with longer LL123 spindle path. Cheapest new complete-ish 1x route. More utilitarian look; 40T is slower on top than the original 42T. Budget
Velo Orange 42T narrow-wide $185 crank + BB JIS square taper; Velo Orange points 135mm rear spacing toward 113mm. Best classic silver look without White Industries money. Chainline must be checked; this is a taste choice, not a blocker fix. Keeper pick
New Albion SC-G 42/30 $140-ish JIS square taper double with 110/74 BCD rings. Utility double if the bike needs lower gears without cassette weirdness. Adds a front derailleur/shifter problem the current build does not need. Maybe later
Used silver MTB triple converted 1x $60-$180 + ring/bolts/BB Can be great if JIS, 110 or 104 BCD, clean tapers, and good pedal threads. Best scavenger/xbiking vibe. Stops being cheap after ring, bolts, BB, and time. Deep cut
White Industries square taper $346 arms + $96-$126 ring + $168+ BB Excellent JIS square-taper system with defined chainline options. Premium keeper-bike polish. Too expensive before fork/frame/headset confidence is settled. Hold
What happened to 2x and 3x?
They are valid drivetrains, just not the first repair move here.

A 2x or 3x system can be lovely with friction shifting. The problem is project scope: this Fairdale needs a safe fork/headset path, a confirmed BB, a rear wheel, a sensible cassette, and bar tape. Adding a front derailleur path now multiplies the open questions.

  • 2x doubleUseful if the bike becomes loaded touring/all-road and you want wider range with tighter rear jumps.
  • 3x tripleFun and mechanically rich, but best saved for a bike that already has compatible parts and a front-shifting plan.
  • 1x singleThe clean finish path because the Archer already started life as a simple 1x9.
04 / Gearing Reality Check

42T with an 11-36 cassette is not boring. It is probably the point.

The troublesome 11-51 cassette is range-rich but complexity-heavy for this bike and derailleur path. A moderate cassette gives a cleaner chainline, better shifts, and enough range for Chicago plus normal all-road riding.

42T x 11-36
32-105 in.
40T x 11-36
31-100 in.
42T x 11-42
28-105 in.
42T x 11-51
23-105 in.
Recommendation: reset around 42T x 11-36 unless the rear derailleur plan changes.

That keeps the bike close to the original Archer intent and avoids making a 9-speed friction rebuild fight a huge cassette.

  • 42T frontOriginal-feeling all-road gear. Best default for the Archer.
  • 40T frontBetter if this becomes cargo/commuter-first or you want slightly easier climbing.
  • 44T frontOnly if it becomes fast pavement-first and chainstay clearance is confirmed.

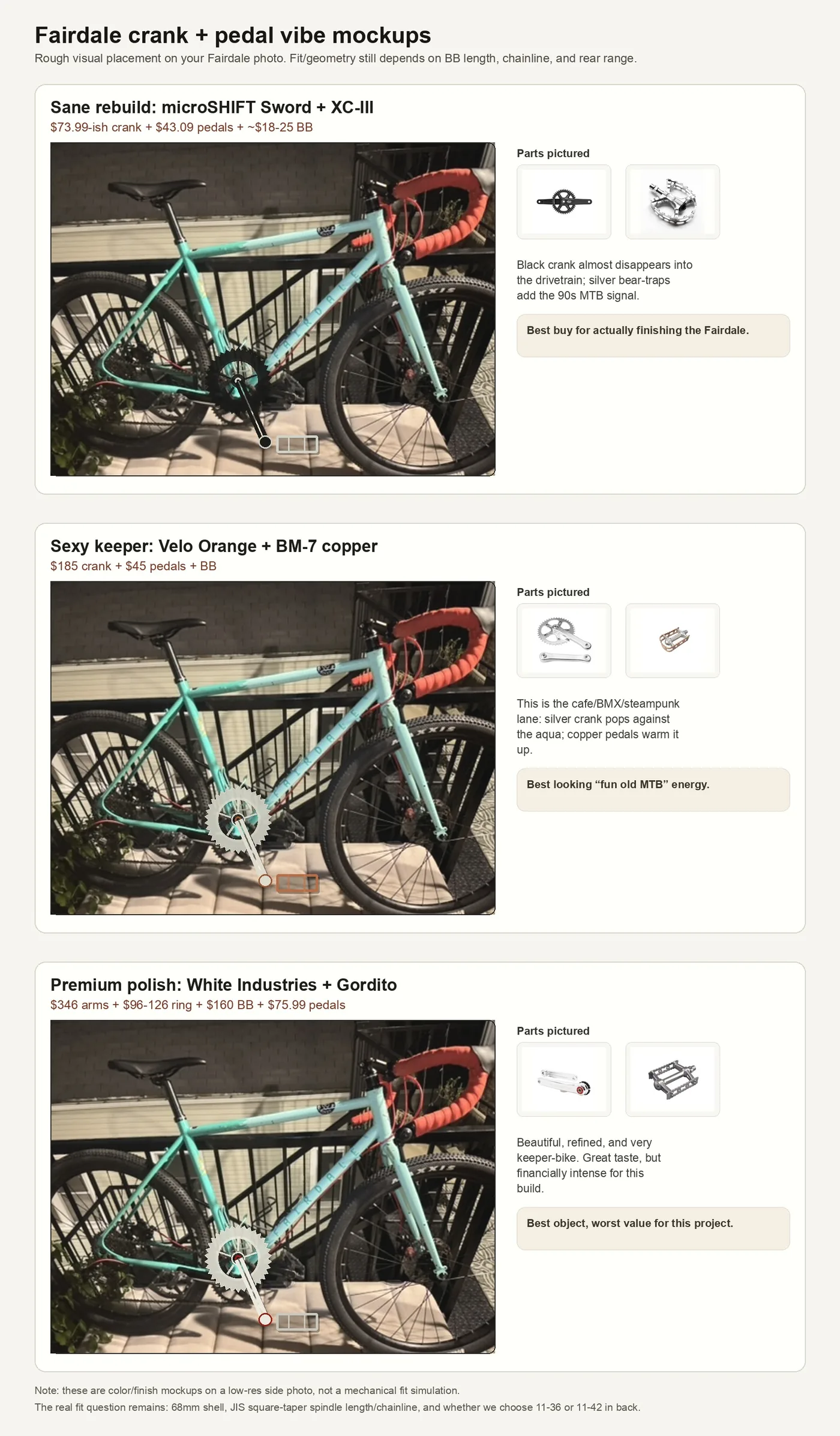

Visual vibe board from the earlier PDF work
Three visual mockups comparing microSHIFT, Velo Orange, and White Industries crank and pedal styles on the Fairdale.
06 / Sources And Audit Trail

What this page is grounded in.

Product availability and pricing move around. These sources were checked on May 18, 2026; use them as decision support, then confirm again before buying.

Bike spec
Fairdale 2017 Weekender Archer for the 1x9, 42T narrow-wide, 11-36T cassette, square-taper crank, and headset reference.
Recommended crank
microSHIFT Sword Black FC-G7900-42 for 68x113mm JIS, 42T, 50mm chainline, and 9/10-speed specs; Universal Cycles for current retail check.
Taste option
Velo Orange single ring crankset for 42T narrow-wide pricing and 135mm rear-spacing BB guidance.
Premium option
White Industries square-taper road cranks for current arm, ring, BB, compatibility, and chainline details.
Budget option
Shimano CUES FC-U4000-1 at Tree Fort Bikes for current 40T square-taper budget pricing and LL123 BB note.
Double option
New Albion SC-G 42/30 for the square-taper double comparison.
Local context
Original PDF v2, Fairdale inventory notes, crank/pedal shortlist, and rebuild notes from the local bike workspace. The public page removes local file paths and keeps only the decision-relevant facts.
